基于小脚丫STEP MXO2的温度显示系统的核心控制模块为小脚丫STEP MXO2开发板，采用由MicroUSB输入的5V供电，温度传感器选用的是DALLAS的经典传感器——DS18B20，一个封装和常见三极管（TO-92）相同的温度传感器，而显示模块采用LCD1602，相信读者对这两个模块一定是极为熟悉。
温度计项目控制核心为小脚丫STEP MXO2 V2版本FPGA开发板，FPGA芯片为Lattice Semiconductor的MachXO2 400HC系列FPGA。
温度采集模块采用Dallas的经典产品——DS18B20，是一个高精度，占用空间小，硬件连接简单，价格低廉的数字温度传感器，采用单总线驱动方式，更为节省开发板资源。
温度显示模块采用集成了ASCII字库的LCD1602，省去了自建字库的麻烦。
温度计的硬件电路比较简单，首先在供电方面，作为控制核心的小脚丫开发板由于具备完善的下载与供电方案，故不必在设计下载电路，只需要一根MicroUSB数据线即可满足整体系统的供电与下载；

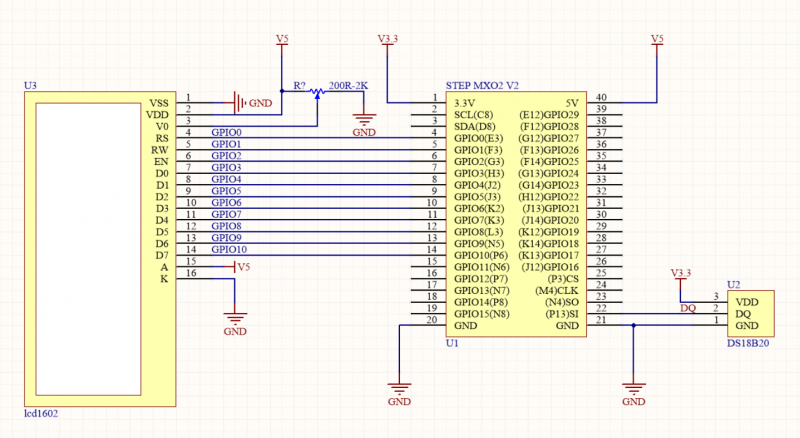

在温度采集部分，DS18B20共有三个引脚，我们参照硬件手册，可发现该芯片的1号引脚接地，2号引脚为数据信号DQ，接到小脚丫的任意引脚上（下图接到了小脚丫STEP MXO2的“SI”引脚上），3号引脚为电源脚，参照手册，DS18B20的输入电压为3.0V-5.5V，此处我们采用了3.3V供电。

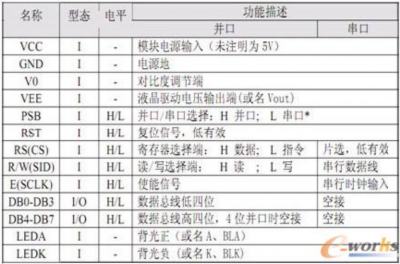

温度显示部分，LCD1602共有16个引脚，下图为LCD1602的引脚简介，对应连接即可：
//-------------------------------------------------------------------- //>>>>>>>>>>>>>>>>>>>>>>>>>COPYRIGHTNOTICE<<<<<<<<<<<<<<<<<<<<<<<<< //-------------------------------------------------------------------- //Module:LCD1602// //Author:STEP// //Description:DisplaythetemperaturebyLCD1602 //-------------------------------------------------------------------- //CodeRevisionHistory: //-------------------------------------------------------------------- //Version:|Mod.Date:|ChangesMade: //V1.0|2017.3.8|Initialver //-------------------------------------------------------------------- moduleLCD_1602(clk,LCD_EN,RS,RW,DB8,one_wire,rst); inputclk,rst;//系统时钟与复位，系统时钟==12M outputLCD_EN; //LCD_EN为LCD模块的使能信号（下降沿触发） outputRS; //RS=0时为写指令；RS=1时为写数据 outputRW; //RW=0时对LCD模块执行写操作；RW=1时对LCD模块执行读操作 output[7:0]DB8; //8位指令或数据总线 inout one_wire; //例化DS18B20模块单总线 reg RS; reg LCD_EN_Sel; reg[7:0] DB8; reg[127:0] data_row1; reg[127:0] data_row2; reg [7:0] result_unit; reg [7:0] result_decade; reg[7:0]result_hundred; reg[7:0]result_dec; reg[7:0] result_dec2; reg[7:0] result_dec3; reg[7:0] result_dec4; reg[7:0] sign; reg[3:0]num_unit; reg[3:0]num_decade; reg[3:0]num_hundred; reg[3:0]num_dec; reg[3:0]num_dec2; reg[3:0]num_dec3; reg[3:0]num_dec4; //若想显示小数点第四位，添加至显示内容并调整即可 reg[19:0]cnt_ref; //LCD1602更新计数器 regref; //更新标志位 always@(posedgeclk_2ms) //产生LCD1602更新所需信号 begin if(cnt_ref==220) begin cnt_ref<=0; ref<=1; ref<=0; end else begin cnt_ref<=cnt_ref+1; ref<=1; end end always@(*) //1602输入数据接口处理 begin case(num_unit) //个位 4'd0:result_unit<=8'b00110000; 4'd1:result_unit<=8'b00110001; 4'd2:result_unit<=8'b00110010; 4'd3:result_unit<=8'b00110011; 4'd4:result_unit<=8'b00110100; 4'd5:result_unit<=8'b00110101; 4'd6:result_unit<=8'b00110110; 4'd7:result_unit<=8'b00110111; 4'd8:result_unit<=8'b00111000; 4'd9:result_unit<=8'b00111001; default:result_unit<=result_unit; endcase case(num_decade) //十位 4'd0:result_decade<=8'b00110000; 4'd1:result_decade<=8'b00110001; 4'd2:result_decade<=8'b00110010; 4'd3:result_decade<=8'b00110011; 4'd4:result_decade<=8'b00110100; 4'd5:result_decade<=8'b00110101; 4'd6:result_decade<=8'b00110110; 4'd7:result_decade<=8'b00110111; 4'd8:result_decade<=8'b00111000; 4'd9:result_decade<=8'b00111001; default:result_decade<=result_decade; endcase case(num_hundred) //百位 4'd0:result_hundred<=8'b00110000; 4'd1:result_hundred<=8'b00110001; 4'd2:result_hundred<=8'b00110010; 4'd3:result_hundred<=8'b00110011; 4'd4:result_hundred<=8'b00110100; 4'd5:result_hundred<=8'b00110101; 4'd6:result_hundred<=8'b00110110; 4'd7:result_hundred<=8'b00110111; 4'd8:result_hundred<=8'b00111000; 4'd9:result_hundred<=8'b00111001; default:result_hundred<=result_hundred; endcase case(num_dec) //小数位 4'd0:result_dec<=8'b00110000; 4'd1:result_dec<=8'b00110001; 4'd2:result_dec<=8'b00110010; 4'd3:result_dec<=8'b00110011; 4'd4:result_dec<=8'b00110100; 4'd5:result_dec<=8'b00110101; 4'd6:result_dec<=8'b00110110; 4'd7:result_dec<=8'b00110111; 4'd8:result_dec<=8'b00111000; 4'd9:result_dec<=8'b00111001; default:result_dec<=result_dec; endcase case(num_dec4) //小数位 4'd0:result_dec4<=8'b00110000; 4'd1:result_dec4<=8'b00110001; 4'd2:result_dec4<=8'b00110010; 4'd3:result_dec4<=8'b00110011; 4'd4:result_dec4<=8'b00110100; 4'd5:result_dec4<=8'b00110101; 4'd6:result_dec4<=8'b00110110; 4'd7:result_dec4<=8'b00110111; 4'd8:result_dec4<=8'b00111000; 4'd9:result_dec4<=8'b00111001; default:result_dec4<=result_dec4; endcase case(num_dec2) //小数位 4'd0:result_dec2<=8'b00110000; 4'd1:result_dec2<=8'b00110001; 4'd2:result_dec2<=8'b00110010; 4'd3:result_dec2<=8'b00110011; 4'd4:result_dec2<=8'b00110100; 4'd5:result_dec2<=8'b00110101; 4'd6:result_dec2<=8'b00110110; 4'd7:result_dec2<=8'b00110111; 4'd8:result_dec2<=8'b00111000; 4'd9:result_dec2<=8'b00111001; default:result_dec2<=result_dec2; endcase case(num_dec3) //小数位 4'd0:result_dec3<=8'b00110000; 4'd1:result_dec3<=8'b00110001; 4'd2:result_dec3<=8'b00110010; 4'd3:result_dec3<=8'b00110011; 4'd4:result_dec3<=8'b00110100; 4'd5:result_dec3<=8'b00110101; 4'd6:result_dec3<=8'b00110110; 4'd7:result_dec3<=8'b00110111; 4'd8:result_dec3<=8'b00111000; 4'd9:result_dec3<=8'b00111001; default:result_dec3<=result_dec3; endcase end //-------------------------------------// //输入时钟12MHz输出周期2ms//division12MHz_2ms.v reg[15:0]count; regclk_2ms; always@(posedgeclk) begin if(count==16'd12_000) begin count<=16'b1; clk_2ms<=~clk_2ms; end else count<=count+1'b1; end//---------------------------------------// reg[127:0]Data_Buf; //液晶显示的数据缓存 reg[4:0]disp_count; reg[3:0]state; //状态机 parameterClear_Lcd=4'b0000; //清屏并光标复位 parameter Set_Disp_Mode=4'b0001; //设置显示模式：8位2行5x7点阵 parameter Disp_On=4'b0010; //显示器开、光标不显示、光标不允许闪烁 parameter Shift_Down=4'b0011; //文字不动，光标自动右移 parameter Write_Addr=4'b0100; //写入显示起始地址 parameter Write_Data_First=4'b0101; //写入第一行显示的数据 parameter Write_Data_Second=4'b0110; //写入第二行显示的数据 assignRW=1'b0; //RW=0时对LCD模块执行写操作(一直保持写状态） assignLCD_EN=LCD_EN_Sel?clk_2ms:1'b0; //通过LCD_EN_Sel信号来控制LCD_EN的开启与关闭 //--------------------------------显示模块----------------------------// always@(posedgeclk_2msornegedgerstornegedgeref) begin //-----------------------复位并更新显示数据--------------------// if(!rst||!ref) begin state<=Clear_Lcd; //复位：清屏并光标复位 RS<=1'b1; //复位：RS=1时为读指令； DB8<=8'b0; //复位：使DB8总线输出全0 LCD_EN_Sel<=1'b0; //复位：关夜晶使能信号 disp_count<=5'b0; data_row1<={ //输入第一行要显示的数据 8'b01010011, //S 8'b01010100, //T 8'b01000101, //E 8'b01010000, //P 8'b00100000, //SPACE 8'b01000110, //F 8'b01010000, //P 8'b01000111, //G 8'b01000001, //A 8'b00100000, //SPACE 8'b00100000, //SPACE 8'b00100000, //SPACE 8'b00100000, //SPACE 8'b00100000, //SPACE 8'b00100000, //SPACE 8'b00100000 //SPACE }; data_row2<={ 8'b00100000, //输入第二行要显示的数据 8'b00100000, //SPACE 8'b01010100, //T 8'b01100101, //e 8'b01101101, //m 8'b00111010, //冒号 sign, result_unit, result_decade, result_hundred, 8'b00101110, //. result_dec, result_dec2, result_dec3, 8'hdf, //℃ 8'b01000011 }; end else begin case(state)//-------------------------------初始化LCD------------------------------------// Clear_Lcd:beginLCD_EN_Sel<=1'b1; //开使能 RS<=1'b0; //写指令 DB8<=8'b00000001; //清屏并光标复位 state<=Set_Disp_Mode;end Set_Disp_Mode:beginDB8<=8'b00111000; //设置显示模式：8位2行5x8点阵 state<=Disp_On; end Disp_On:beginDB8<=8'b00001100;//显示器开、光标不显示、光标不允许闪烁 state<=Shift_Down; end Shift_Down:beginDB8<=8'b00000110; //文字不动，光标自动右移 state<=Write_Addr; end //----------------------显示循环-----------// Write_Addr:beginRS <=1'b0; //写指令 DB8 <=8'b10000000; //写入第一行显示起始地址：第一行第1个位置 Data_Buf <=data_row1; //将第一行显示的数据赋给Data_First_Buf state <=Write_Data_First; end Write_Data_First:begin //写第一行数据 if(disp_count==16) //disp_count等于15时表示第一行数据已写完 begin RS <=1'b0; //写指令 DB8 <=8'b11000000; //送入写第二行的指令,第2行第1个位置 disp_count<=5'b0; //计数清0 Data_Buf<=data_row2; //将第2行显示的数据赋给Data_First_Buf state <=Write_Data_Second; end //写完第一行进入写第二行状态 else //没写够16字节 begin RS<=1'b1; //RS=1表示写数据 DB8<=Data_Buf[127:120]; Data_Buf<=(Data_Buf<<8); disp_count<=disp_count+1'b1; state<=Write_Data_First; endend Write_Data_Second:begin //写第二行数据 if(disp_count==16)//数据发送完毕 begin RS<=1'b0; //写指令 DB8<=8'b10000000; //写入第一行显示起始地址：第一行第1个位置 disp_count<=5'b0; state<=Write_Addr; //重新循环 end else begin RS<=1'b1; DB8<=Data_Buf[127:120]; Data_Buf<=(Data_Buf<<8); disp_count<=disp_count+1'b1; state<=Write_Data_Second; end end//---------------------------------// default:state<=Clear_Lcd;//若state为其他值，则将state置为Clear_Lcd endcase end end//--------------------------------------------------------------------------// wireclk_in;wirerst_n_in;wire[15:0]data_out; wiretem_flag=data_out[15:11]?1'b0:1'b1; wire[10:0]tem_code=tem_flag?data_out[10:0]:(~data_out[10:0])+1'b1; wire[20:0]tem_data=tem_code*625;reg[27:0]bcd_code; DS18B20ZDS18B20Z_uut( .one_wire(one_wire), .clk_in(clk), .rst_n_in(rst), .data_out(data_out) ); reg [48:0]shift_reg; always@(posedgeclkornegedgerst)begin shift_reg={28'h0,tem_data}; if(!rst)bcd_code=0; else begin repeat(21)//repeatB_SIZEtimes begin if(shift_reg[24:21]>=5)shift_reg[24:21]=shift_reg[24:21]+2'b11; if(shift_reg[28:25]>=5)shift_reg[28:25]=shift_reg[28:25]+2'b11; if(shift_reg[32:29]>=5)shift_reg[32:29]=shift_reg[32:29]+2'b11; if(shift_reg[36:33]>=5)shift_reg[36:33]=shift_reg[36:33]+2'b11; if(shift_reg[40:37]>=5)shift_reg[40:37]=shift_reg[40:37]+2'b11; if(shift_reg[44:41]>=5)shift_reg[44:41]=shift_reg[44:41]+2'b11; if(shift_reg[48:45]>=5)shift_reg[48:45]=shift_reg[48:45]+2'b11; if(tem_flag==0)sign<=8'b00101101; if(tem_flag==1)sign<=8'b00100000; shift_reg=shift_reg<<1; end bcd_code=shift_reg[48:21]; num_unit <= bcd_code[27:24]; num_decade <= bcd_code[23:20]; num_hundred<= bcd_code[19:16]; num_dec <= bcd_code[15:12]; num_dec2 <=bcd_code[11:8]; num_dec3 <=bcd_code[7:4]; num_dec4 <=bcd_code[3:0]; end end endmodule
//--------------------------------------------------------------------//>>>>>>>>>>>>>>>>>>>>>>>>>COPYRIGHTNOTICE<<<<<<<<<<<<<<<<<<<<<<<<=3'd5)begin cnt_1mhz<=3'd0; clk_1mhz<=~clk_1mhz; endelsebegin cnt_1mhz<=cnt_1mhz+1'b1; end end reg one_wire_buffer; reg [3:0] cnt_main; reg [7:0] data_wr; reg [7:0] data_wr_buffer; reg [2:0] cnt_init; reg [19:0] cnt_delay; reg [19:0] num_delay; reg [5:0] cnt_write; reg [5:0] cnt_read; reg [15:0] temperature; reg [7:0] temperature_buffer; reg [2:0] state=IDLE; reg [2:0] state_back=IDLE; always@(posedgeclk_1mhzornegedgerst_n_in)begin if(!rst_n_in)begin state<=IDLE; state_back<=IDLE; cnt_main<=4'd0; cnt_init<=3'd0; cnt_write<=6'd0; cnt_read<=6'd0; cnt_delay<=20'd0; one_wire_buffer<=1'bz; temperature<=16'h0; endelsebegin case(state) IDLE:begin state<=MAIN; state_back<=MAIN; cnt_main<=4'd0; cnt_init<=3'd0; cnt_write<=6'd0; cnt_read<=6'd0; cnt_delay<=20'd0; one_wire_buffer<=1'bz; end MAIN:begin if(cnt_main>=4'd11)cnt_main<=1'b0; elsecnt_main<=cnt_main+1'b1; case(cnt_main) 4'd0:beginstate<=INIT;end 4'd1:begindata_wr<=8'hcc;state<=WRITE;end 4'd2:begindata_wr<=8'h44;state<=WRITE;end 4'd3:beginnum_delay<=20'd750000;state<=DELAY; state_back<=MAIN; end 4'd4:beginstate<=INIT;end 4'd5:begindata_wr<=8'hcc;state<=WRITE;end 4'd6:begindata_wr<=8'hbe;state<=WRITE; end 4'd7:beginstate<=READ;end 4'd8:begintemperature[7:0]<=temperature_buffer; end 4'd9:beginstate<=READ;end 4'd10:begintemperature[15:8]<=temperature_buffer; end 4'd11:beginstate<=IDLE;data_out<=temperature;end default:state<=IDLE; endcase end INIT:begin if(cnt_init>=3'd6)cnt_init<=1'b0; elsecnt_init<=cnt_init+1'b1; case(cnt_init) 3'd0:beginone_wire_buffer<=1'b0;end 3'd1:beginnum_delay<=20'd500;state<=DELAY; state_back<=INIT;end 3'd2:beginone_wire_buffer<=1'bz;end 3'd3:beginnum_delay<=20'd100;state<=DELAY; state_back<=INIT;end 3'd4:beginif(one_wire)state<=IDLE; elsestate<=INIT;end 3'd5:beginnum_delay<=20'd400;state<=DELAY; state_back<=INIT;end 3'd6:beginstate<=MAIN;end default:state<=IDLE; endcase end WRITE:begin if(cnt_write>=6'd50)cnt_write<=1'b0; elsecnt_write<=cnt_write+1'b1; case(cnt_write) //lockdata_wr 6'd0:begindata_wr_buffer<=data_wr;end //writebit0 6'd1:beginone_wire_buffer<=1'b0;end 6'd2:beginnum_delay<=20'd2; state<=DELAY; state_back<=WRITE;end 6'd3:beginone_wire_buffer<=data_wr_buffer[0];end 6'd4:beginnum_delay<=20'd80; state<=DELAY; state_back<=WRITE;end 6'd5:beginone_wire_buffer<=1'bz;end 6'd6:beginnum_delay<=20'd2; state<=DELAY; state_back<=WRITE;end //writebit1 6'd7:beginone_wire_buffer<=1'b0;end 6'd8:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end 6'd9:beginone_wire_buffer<=data_wr_buffer[1];end 6'd10:beginnum_delay<=20'd80;state<=DELAY; state_back<=WRITE;end 6'd11:beginone_wire_buffer<=1'bz;end 6'd12:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end //writebit2 6'd13:beginone_wire_buffer<=1'b0;end 6'd14:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end 6'd15:beginone_wire_buffer<=data_wr_buffer[2];end 6'd16:beginnum_delay<=20'd80;state<=DELAY; state_back<=WRITE;end 6'd17:beginone_wire_buffer<=1'bz;end 6'd18:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end //writebit3 6'd19:beginone_wire_buffer<=1'b0;end 6'd20:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end 6'd21:beginone_wire_buffer<=data_wr_buffer[3];end 6'd22:beginnum_delay<=20'd80;state<=DELAY; state_back<=WRITE;end 6'd23:beginone_wire_buffer<=1'bz;end 6'd24:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end //writebit4 6'd25:beginone_wire_buffer<=1'b0;end 6'd26:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end 6'd27:beginone_wire_buffer<=data_wr_buffer[4];end 6'd28:beginnum_delay<=20'd80;state<=DELAY; state_back<=WRITE;end 6'd29:beginone_wire_buffer<=1'bz;end 6'd30:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end //writebit5 6'd31:beginone_wire_buffer<=1'b0;end 6'd32:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end 6'd33:beginone_wire_buffer<=data_wr_buffer[5];end 6'd34:beginnum_delay<=20'd80;state<=DELAY; state_back<=WRITE;end 6'd35:beginone_wire_buffer<=1'bz;end 6'd36:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end //writebit6 6'd37:beginone_wire_buffer<=1'b0;end 6'd38:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end 6'd39:beginone_wire_buffer<=data_wr_buffer[6];end 6'd40:beginnum_delay<=20'd80;state<=DELAY; state_back<=WRITE;end 6'd41:beginone_wire_buffer<=1'bz;end 6'd42:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end //writebit7 6'd43:beginone_wire_buffer<=1'b0;end 6'd44:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end 6'd45:beginone_wire_buffer<=data_wr_buffer[7];end 6'd46:beginnum_delay<=20'd80;state<=DELAY; state_back<=WRITE;end 6'd47:beginone_wire_buffer<=1'bz;end 6'd48:beginnum_delay<=20'd2;state<=DELAY; state_back<=WRITE;end //backtomain 6'd49:beginnum_delay<=20'd80;state<=DELAY; state_back<=WRITE;end 6'd50:beginstate<=MAIN;end default:state<=IDLE; endcase end READ:begin if(cnt_read>=6'd48)cnt_read<=1'b0; elsecnt_read<=cnt_read+1'b1; case(cnt_read) //readbit0 6'd0:beginone_wire_buffer<=1'b0;end 6'd1:beginnum_delay<=20'd2;state<=DELAY; state_back<=READ;end 6'd2:beginone_wire_buffer<=1'bz;end 6'd3:beginnum_delay<=20'd10;state<=DELAY; state_back<=READ;end 6'd4:begintemperature_buffer[0]<=one_wire;end 6'd5:beginnum_delay<=20'd55;state<=DELAY; state_back<=READ;end //readbit1 6'd6:beginone_wire_buffer<=1'b0;end 6'd7:beginnum_delay<=20'd2;state<=DELAY; state_back<=READ;end 6'd8:beginone_wire_buffer<=1'bz;end 6'd9:beginnum_delay<=20'd10;state<=DELAY; state_back<=READ;end 6'd10:begintemperature_buffer[1]<=one_wire;end 6'd11:beginnum_delay<=20'd55;state<=DELAY; state_back<=READ;end //readbit2 6'd12:beginone_wire_buffer<=1'b0;end 6'd13:beginnum_delay<=20'd2;state<=DELAY; state_back<=READ;end 6'd14:beginone_wire_buffer<=1'bz;end 6'd15:beginnum_delay<=20'd10;state<=DELAY; state_back<=READ;end 6'd16:begintemperature_buffer[2]<=one_wire;end 6'd17:beginnum_delay<=20'd55;state<=DELAY; state_back<=READ;end //readbit3 6'd18:beginone_wire_buffer<=1'b0;end 6'd19:beginnum_delay<=20'd2;state<=DELAY; state_back<=READ;end 6'd20:beginone_wire_buffer<=1'bz;end 6'd21:beginnum_delay<=20'd10;state<=DELAY; state_back<=READ;end 6'd22:begintemperature_buffer[3]<=one_wire;end 6'd23:beginnum_delay<=20'd55;state<=DELAY; state_back<=READ;end //readbit4 6'd24:beginone_wire_buffer<=1'b0;end 6'd25:beginnum_delay<=20'd2;state<=DELAY; state_back<=READ;end 6'd26:beginone_wire_buffer<=1'bz;end 6'd27:beginnum_delay<=20'd10;state<=DELAY; state_back<=READ;end 6'd28:begintemperature_buffer[4]<=one_wire;end 6'd29:beginnum_delay<=20'd55;state<=DELAY; state_back<=READ;end //readbit5 6'd30:beginone_wire_buffer<=1'b0;end 6'd31:beginnum_delay<=20'd2;state<=DELAY; state_back<=READ;end 6'd32:beginone_wire_buffer<=1'bz;end 6'd33:beginnum_delay<=20'd10;state<=DELAY; state_back<=READ;end 6'd34:begintemperature_buffer[5]<=one_wire;end 6'd35:beginnum_delay<=20'd55;state<=DELAY; state_back<=READ;end //readbit6 6'd36:beginone_wire_buffer<=1'b0;end 6'd37:beginnum_delay<=20'd2;state<=DELAY; state_back<=READ;end 6'd38:beginone_wire_buffer<=1'bz;end 6'd39:beginnum_delay<=20'd10;state<=DELAY; state_back<=READ;end 6'd40:begintemperature_buffer[6]<=one_wire;end 6'd41:beginnum_delay<=20'd55;state<=DELAY; state_back<=READ;end //readbit7 6'd42:beginone_wire_buffer<=1'b0;end 6'd43:beginnum_delay<=20'd2;state<=DELAY; state_back<=READ;end 6'd44:beginone_wire_buffer<=1'bz;end 6'd45:beginnum_delay<=20'd10;state<=DELAY; state_back<=READ;end 6'd46:begintemperature_buffer[7]<=one_wire;end 6'd47:beginnum_delay<=20'd55;state<=DELAY; state_back<=READ;end //backtomain 6'd48:beginstate<=MAIN;end default:state<=IDLE; endcase end DELAY:begin if(cnt_delay>=num_delay)begin cnt_delay<=1'b0; state<=state_back; endelsecnt_delay<=cnt_delay+1'b1; end endcase end end assign one_wire=one_wire_buffer; endmodule
